BALL VALVE, 2 WAY, SAE-12 5075 PSI, LOCKING DEVICE

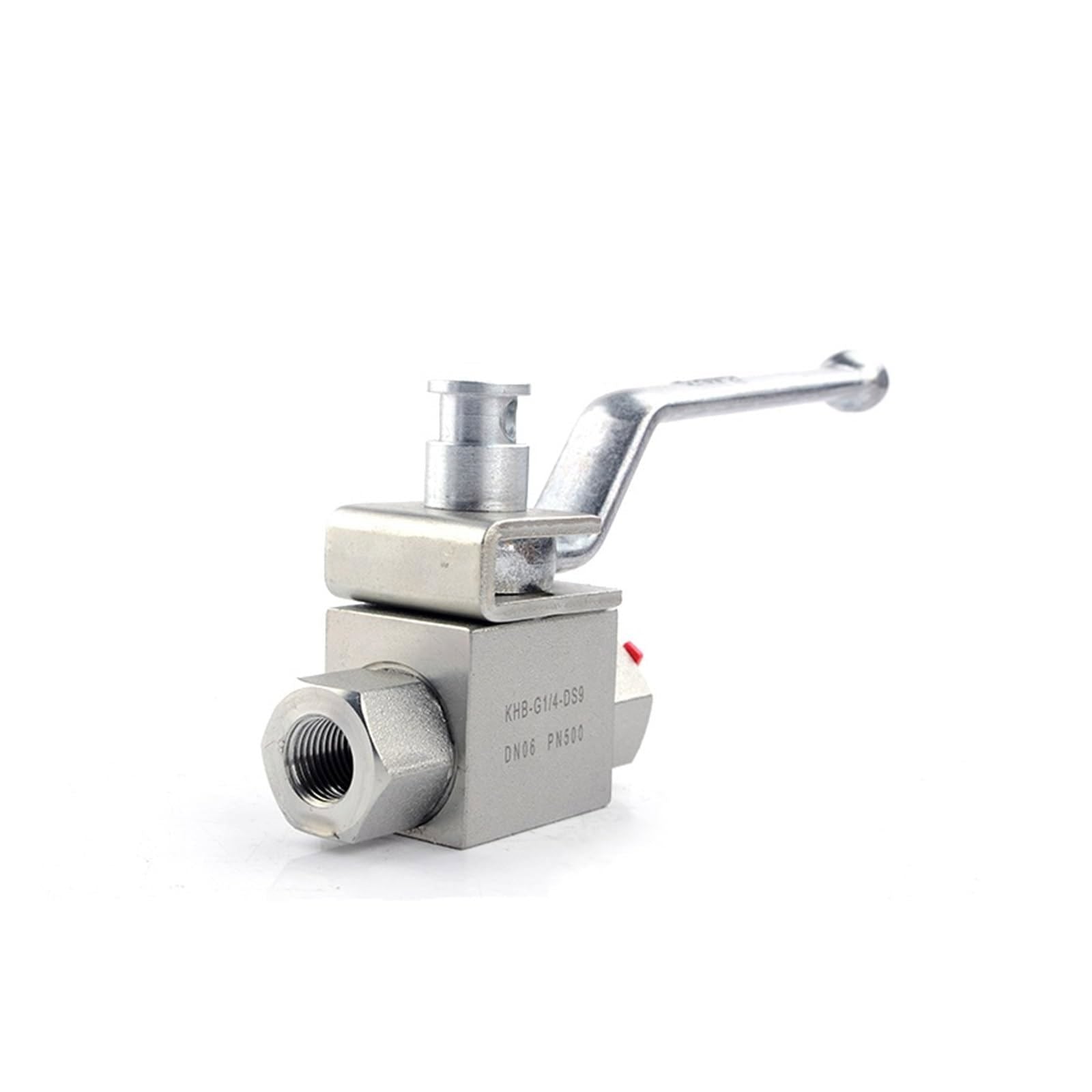

BALL VALVE, 2 WAY, SAE-20 4500 PSI, LOCKING DEVICE
CHECK VALVE | C-16-2 CAVITY | 3000 PSI

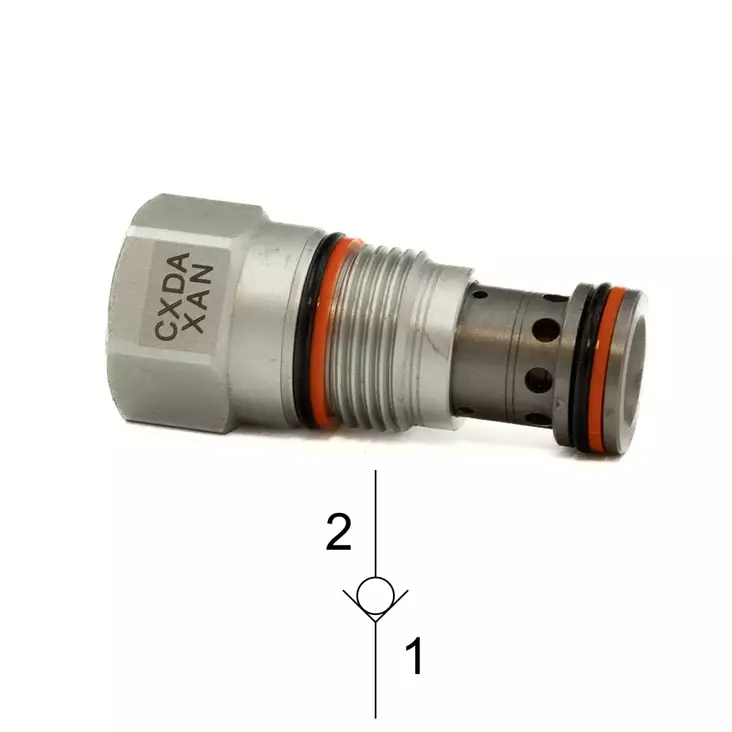

CARTRIDGE CHECK VALVE | 32 GPM | C12-2 CAVITY | 25 PSI CRACKING
Free flow nose to side check valve
Capacity 20 gpm | Cavity T-13A | 4 PSI
D03 MANIFOLD SEAL KIT VITON
HI-TEMP 90 DURO SEAL KIT
D05 MANIFOLD SEAL KIT VITON
HI-TEMP 90 DURO SEAL KIT
D03 | 110V TERMINAL BOX | MOTOR SPOOL (A/B TO T NEUTRAL) | REVERSED WIRING | 3 POS SPRING CENTER
D03 | SINGLE SOL | 110V TERMINAL BOX | CLOSED TRANSITION | SPRING OFFSET
12V POWERPACK
6 QUART (1.5GAL) DOUBLE ACTING
2 GPM W/ 15FT REMOTE
RELIEF VALVE, DIRECT ACTING, 8 GPM, 4000 PSI, C10-2,
100 - 3000 PSI
Moisture-Eliminating Breather Vent
1 NPT Male, for 5-350 Gallon Tank
PRESURE REDUCING/RELIEVING VALVE, 10 GPM, 3000
PSI, C10-3, 100 - 3000 PSI
D08 / 110V / 3 POS 4WAY / CLOSED CENTER SPOOL / SPRING CENTERED / INTERNAL PILOT & EXTERNAL DRAIN
D03 / 110V DIN CONNECT/ MOTOR SPOOL / 4 WAY 3 POS
Field wire able solenoid valve connector, 18mm DIN 43650 Form A molded connector, 2- 48 VDC, 16-12 AWG, accepts cable diameter size 0.24-0.32in, surge protection, LED indication.
DIN CONNECTOR, 43650A, 110-
220VAC, CLEAR, LED
DIN CONNECTOR, 43650A, 12-48VDC, CLEAR, LED
3-way, solenoid-operated directional spool valve
Capacity 12 gpm | Cavity T-11A
Normally Open / Closed Trans
DIRECTIONAL CONTROL SOLENOID
1-5/16″ - 12UNF-2B | NORMALLY OPEN, FULL REVERSE FLOW |
DIRECTIONAL CONTROL SOLENOID
1-5/16″ - 12UNF-2B | NORMALLY CLOSED, METERED REVERSE FLOW
D05/110V (95-120V)DIN / CLOSED CENTER (CYLINDER SPOOL) / 4 WAY 3 POS
D05 | 4 WAY 3 POS | MOTOR SPOOL | 110V DIN
4W/3P D03 Spring Centered, Valve, All Ports
Blocked, 12 VDC, DIN
4W/3P D03 Spring Centered, Valve, All Ports Blocked, 24VDC, DIN
D03/12V/DIN CONNECT
ALL PORTS OPEN IN NUETRAL
4W/3P D03 Spring Centered Valve | P Closed A&B to T | 12
VDC | DIN
4W/3P D03 Spring Centered, Valve, P Closed A&B to T, 24 VDC, DIN
Motor Spool
4W/3P D03 Spring Centered, Valve, Tandem
Center, 12 VDC, DIN
D03/24V/DIN CONNECT
P TO T IN NEUTRAL
EAJ
Valve body, hydraulic, aluminum, T-11A, SAE 8
Ninety degree with high capacity port 3
Pressure Reducer Body
ISO 03: On A and B with cross pilot / T-11A
NINETY DEGREE BODY / T-11A / SAE 6
FITTING, AIR, UNION TEE, 6MM
