40 l/min Open neutral position
To be used when PVB is without LS A/B shuttle valve
Spring Return type
PIN/FRICTION DETENT
Seal Kit for PVM/PVMD 32 ACTUATOR KIT

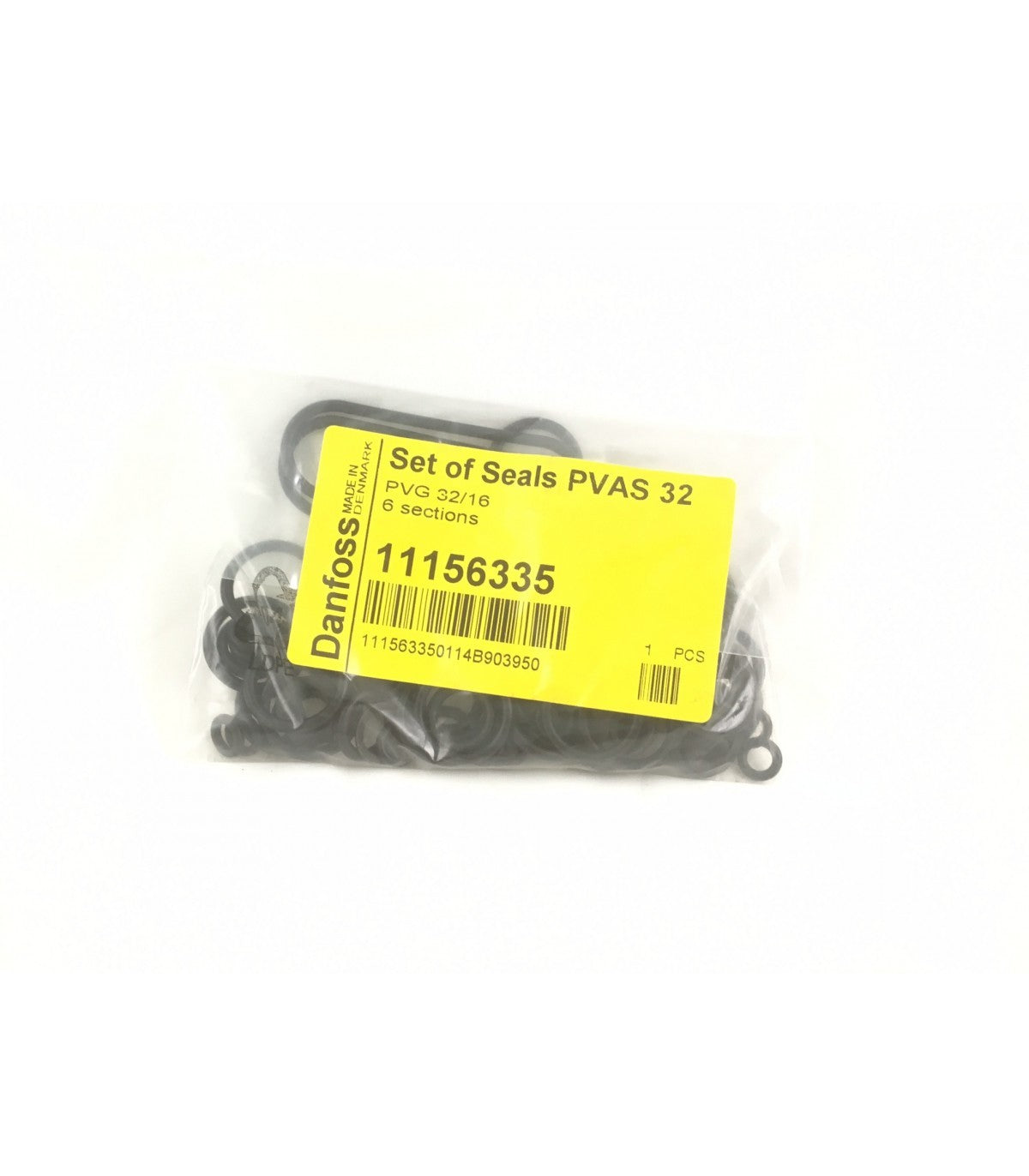

Set of Seals PVAS 32
PVG32/16
6 Sections
Open center pump side module for pumps with fixed displacement
With pilot oil supply for electrically actuated valves
Port Size: P=1-1/16 inch-12, T=1-1/16 inch-12
Standard PVEH, passive fault monitoring proportional actuation for PVG32 & PVG100
11-32 Vdc
Series 7 DIN/Hirschmann Connector
(157B4033)
PVBS spool 40 l/min neutral closed type flow control
Linear flow spool
PVAS32 for 4 PVB or 5 PVB+PVGI
PVAS32 Mounting Kit
1 SECTION ON PVG120/32 COMBO

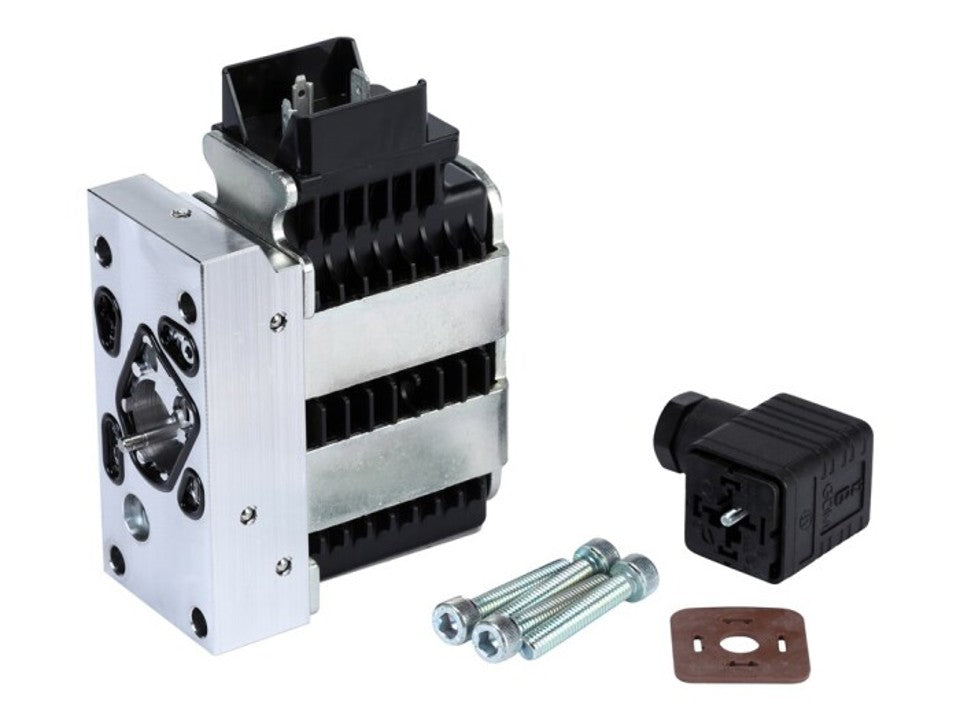

PVES32-ACTUATOR--S7-1x4DIN-S-PAS
REPLACES 157B4833

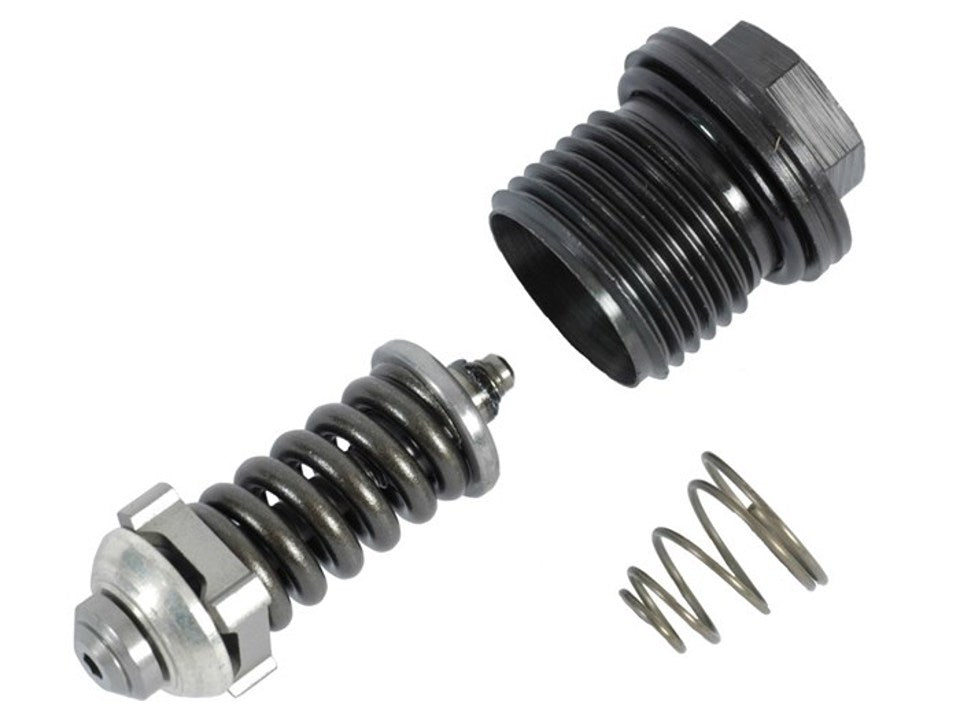

PVLP, shock & suction valve A/B
Pressure setting: 32 bar / 464PSI (Not adjustable)
PVLP, shock & suction valve A/B
Pressure setting: 300bar / 4351PSI (Not adjustable)
25 l/min Open neutral position
To be used when PVB is with LS A/B shuttle valve
Spring Return type

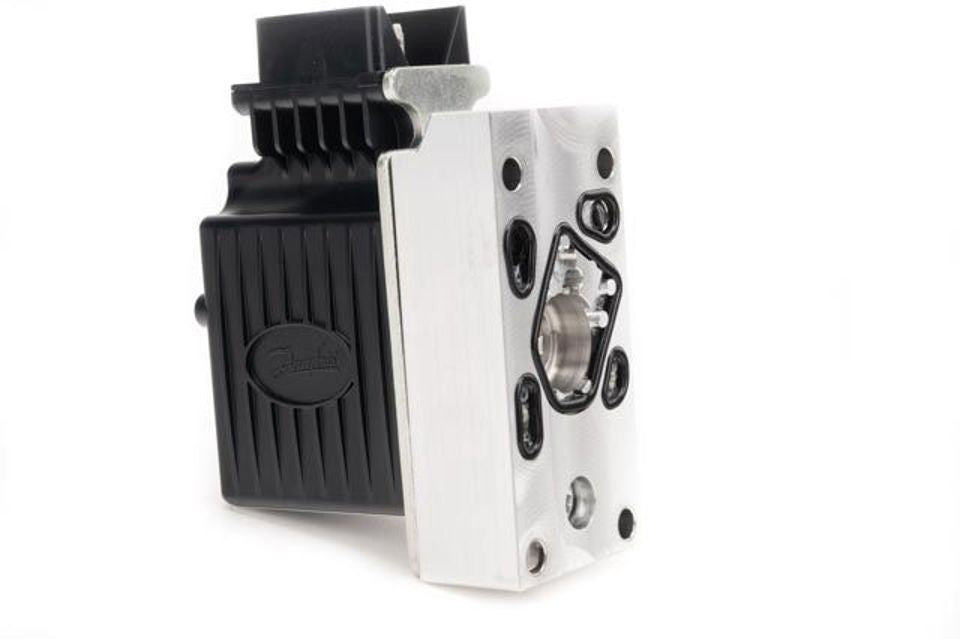

PVEH32-ACTUATOR--S7-1x4DIN-H-ACT
REPLACES 157B4032
PVAS32 assembly kit for 5 x PVB
100 l/min Open neutral position
To be used when PVB is without LS A/B shuttle valve
Spring Return type
65 l/min Open neutral position
To be used when PVB is without LS A/B shuttle valve

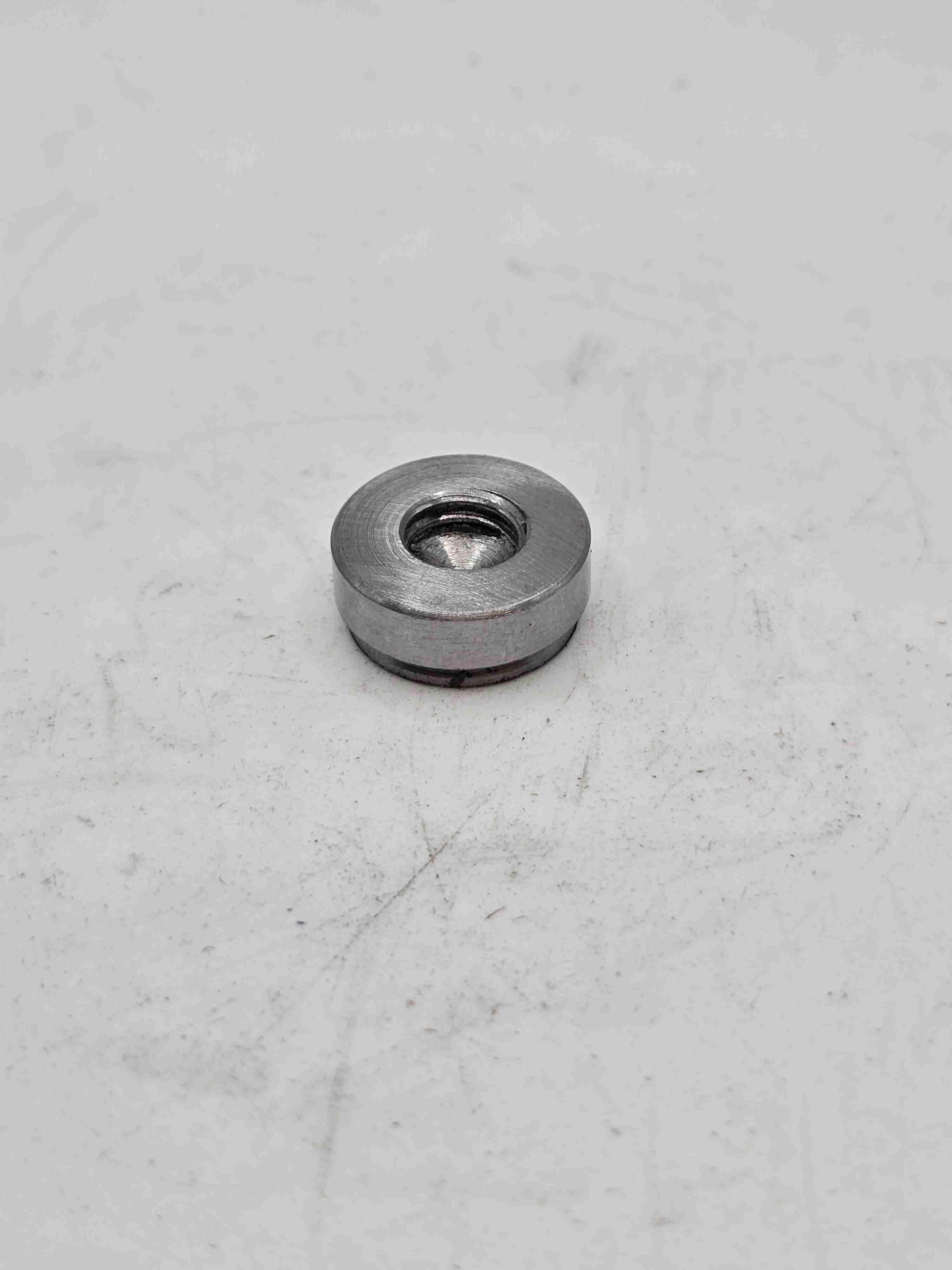

PVG 32 SECTIONAL VALVE PLUG

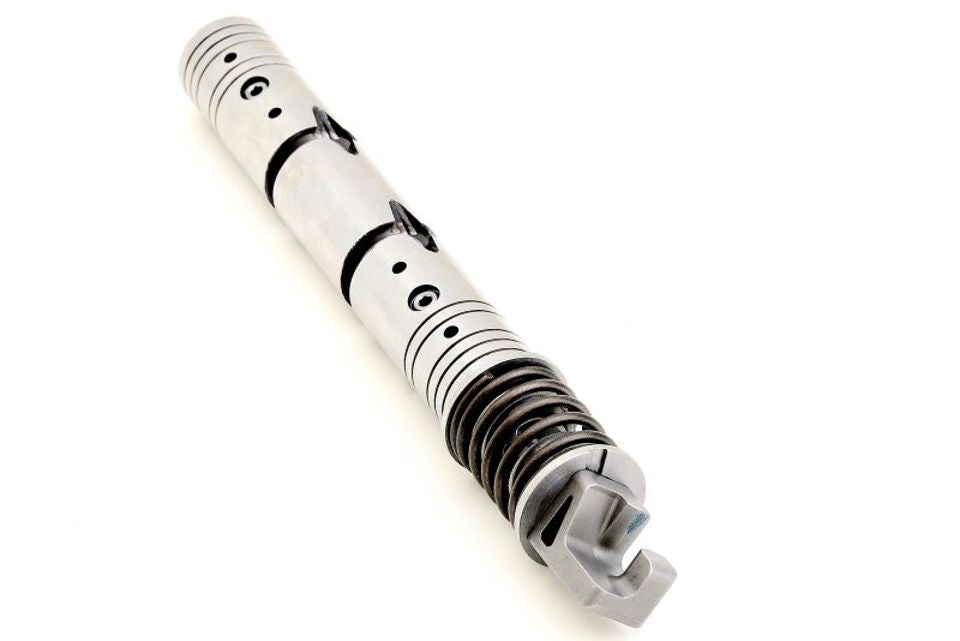

PVBS main spool
FLOAT SPOOL
SEAL KIT PVAS / WORK SECTION KIT
PVAS ASSEMBLY KIT / 8 SECTION
PVAS ASSEMBLY KIT / 7 SECTION
PVAS ASSEMBLY KIT / 6 SECTION

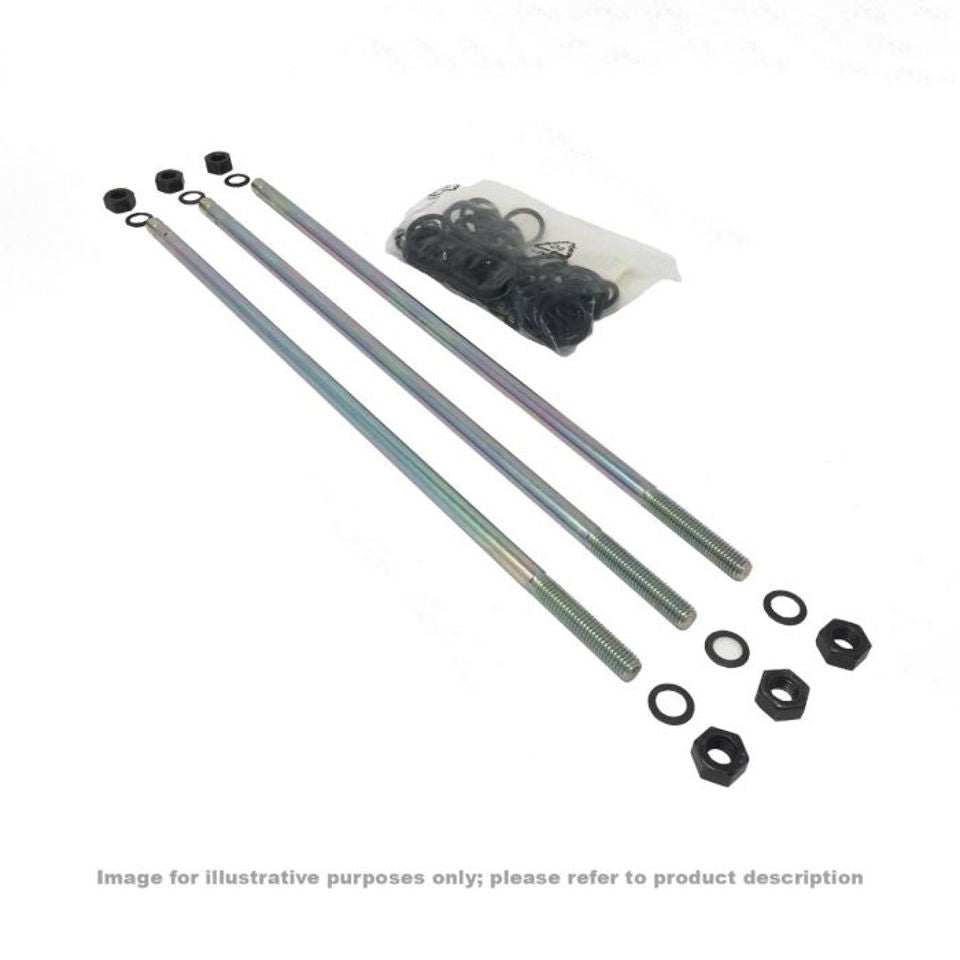

PVAS assembly kit
3 SECTION
PVAS assembly kit
PVAS32 for 1 x PVB or for 2 x PVB on a PVGI (Combi)
130 l/min Open neutral position
To be used when PVB is with LS A/B shuttle valve
LS A/B / 26.4 GPM / OPEN NEUTRAL
PVG32 SPOOL 17.2 GPM MTR / LS BODY
PVBS MAIN SPOOL 10.6 GPM MTR / LS BODY
100 l/min Closed neutral position
To be used when PVB is with LS A/B shuttle valve
65 l/min Closed neutral position
To be used when PVB is with LS A/B shuttle valve
40 l/min Closed neutral position
To be used when PVB is with LS A/B shuttle valve
25 l/min Closed neutral position
To be used when PVB is with LS A/B shuttle valve
